Hydraulic Clutch Conversion
Application: 1994-1995 Ford Mustang T5 Transmission / Swap into Different Vehicle (NOT FOR USE IN 94-95 MUSTANG)

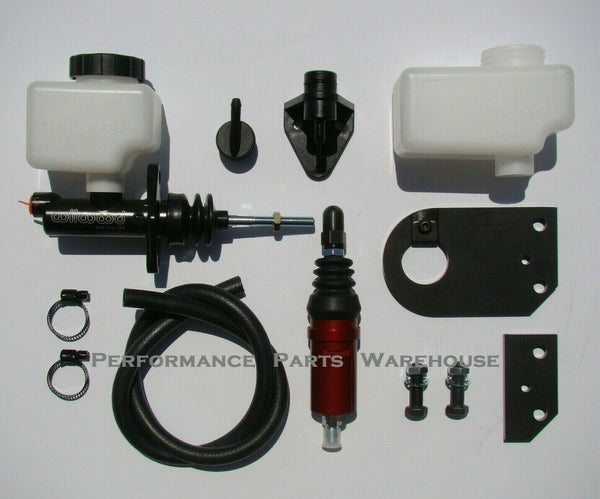

Kit includes: Master Cylinder with Direct Mount and Remote Reservoir, Billet Aluminum Slave Cylinder & Bracket.
Slave Cylinder has an adjustable clutch fork actuator rod.
*Kit does Not include -4AN steel braided line (master to slave) and heim joint to connect master cylinder to pedal.
How to Calculate Proper Pedal Ratio:
Formula for Pedal Ratio:
Pedal ratio is the ratio of leverage your clutch pedal applies to the master cylinder. To determine the pedal ratio you need to measure the height of the pedal to the pivot point then divided the measurement of the pivot point to the lower arm that controls your rod to the master cylinder.
A = height of pedal
B = center to center measurement of the lower arm
C = pedal ratio
A divided by B equals C
Or example 9" divided by 1.5" equal 6 to 1 ratio.
